Bridge Cutting Machine (Single/Double Table)

Single and double table configurations for marble and granite slab cutting.

Bridge Cutting Machine (Single/Double Table)

Key Highlights

Single table and double table configurations available.

CNC profile option available in selected models (STC / DTC / DTCP).

X, Y, Z axis with linear guide system for smooth movement.

Rack & pinion drive on X/Y axis for precise motion control.

Heavy-duty electrical system with 30 HP cutting motor and hydraulic table pump.

Complete Technical Specifications

WhatsApp

Applications & Use Cases

Marble and granite slab cutting.

Straight and accurate stone sizing for fabrication units.

High-volume cutting for stone processing plants.

Cutting operations for flooring, wall cladding, and kitchen top jobs.

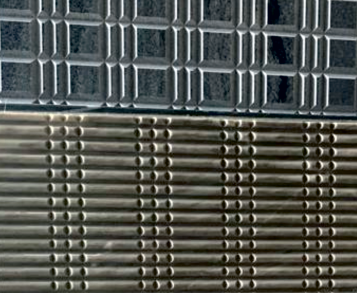

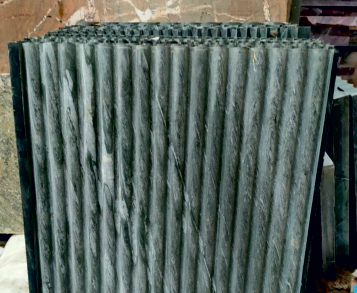

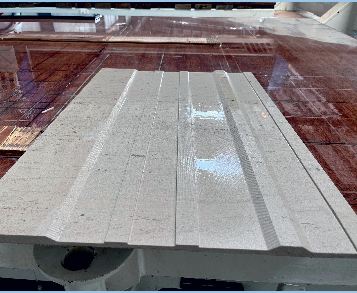

Application Image

Application Image

Application Image

Product Video

Bridge Cutter with Profiling

Designed for accurate stone cutting and edge profiling in a single machine. Combines heavy-duty bridge cutting with profiling cutter for straight cutting, angle cutting, and profile shaping.

Cutting Functions

✓Straight cutting
✓Right-angle cutting
✓Slab and tile cutting
✓Floating

Profiling Functions

✓Straight edge profiling
✓Chamfering
✓Edge shaping and finishing
✓Uniform profile formation

Head & Axis Movement

✓Cutter head vertical (up & down) movement

✓Head rotation for vertical and horizontal cutting

✓Head tilt for chamfering and profiling

Applications

✓Marble and granite slabs
✓Floor and wall tiles
✓Countertop edges
✓Staircase edges
✓Architectural stone finishing

Key Advantages

✓Cutting and profiling in one machine
✓High accuracy and smooth finish
✓Reduced manual work
✓Suitable for continuous production

Gallery & Videos

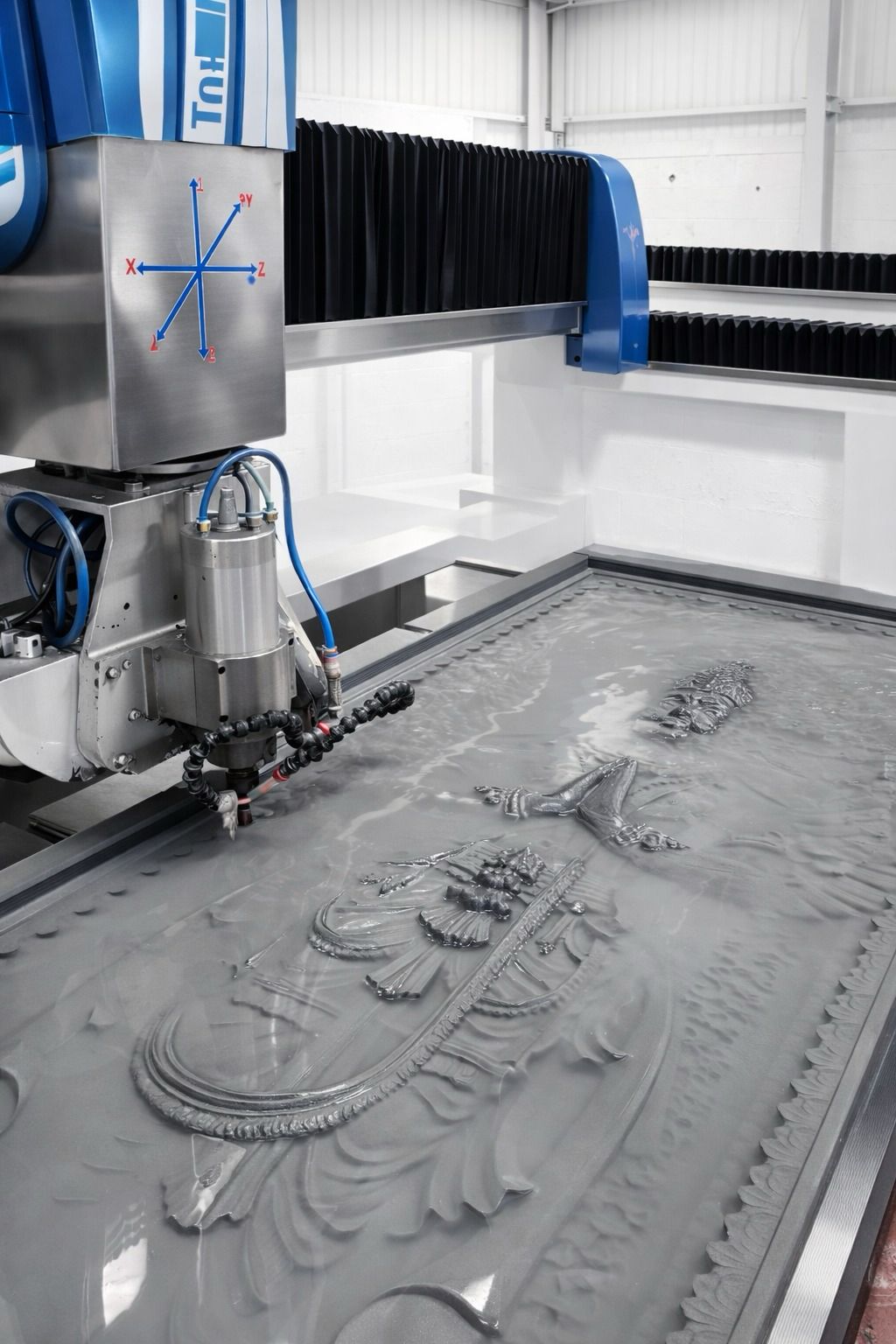

CNC Bridge Cutter - Surface Profiling & Engraving

Advanced stone processing machine with CNC mode for accurate cutting, surface profiling by cutter, and engraving. Combines bridge cutter strength with CNC precision.

CNC System

✓ X, Y, Z axes (standard)
✓ Optional additional axis
✓ High accuracy & repeatability

Cutting Functions

✓ Straight cutting
✓ Right-angle cutting
✓ Angle cutting
✓ Accurate slab and tile cutting

Engraving

✓ Designs & patterns
✓ Text engraving
✓ Decorative work

Surface Profiling by Cutter

✓Surface shaping and leveling

✓Edge profiling

✓Chamfering and bevel cutting

✓Uniform smooth stone finishing

Applications

✓Stone surface profiling
✓Decorative engraving
✓Table tops and counter tops
✓Architectural stone elements
✓Premium stone processing

Key Advantages

✓CNC-controlled high accuracy
✓Cutting, profiling & engraving
✓Reduced manual work
✓Complex and repeat jobs
✓Modern stone processing

Gallery & Videos

CNC Bridge Cutter - Surface Profiling & Engraving

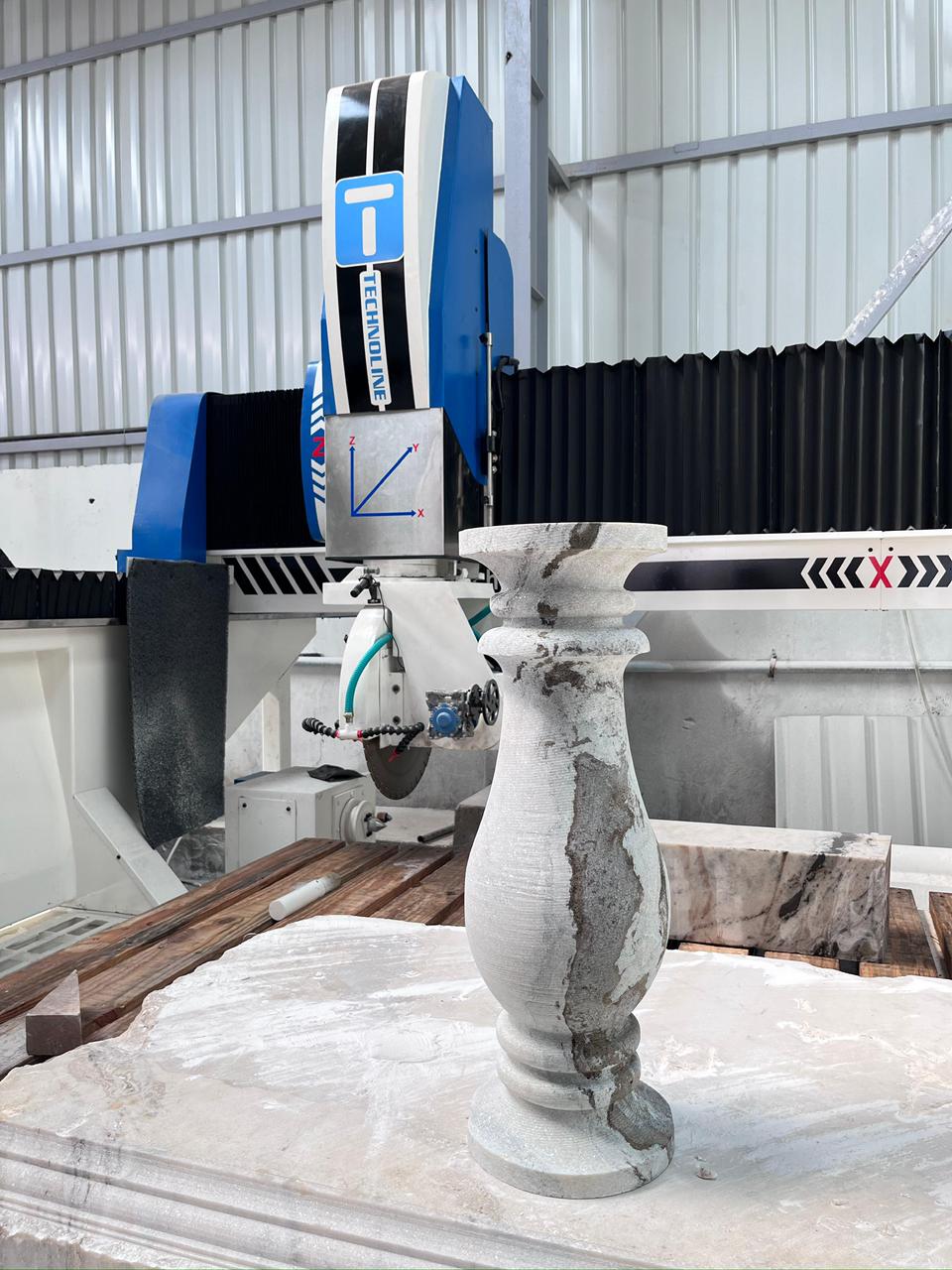

Lathe Attachment - Pillar Making by Bridge Cutter

Enables pillar making using bridge cutter system. Stone pillar rotates on lathe while cutter moves along X and Z axes for accurate shaping and carving.

Working Principle

✓Stone pillar mounted on lathe attachment
✓Motor-driven smooth and uniform turning
✓Bridge cutter performs cutting and shaping

Axis Movement Details

✓Pillar Rotation: Motorized
✓X-axis: Lengthwise profiling
✓Z-axis: Depth and diameter control

Functions

✓Round pillar making

✓Cylindrical stone shaping

✓Rough carving and profiling

✓Uniform diameter and smooth surface

Applications

✓Stone pillars and columns
✓Architectural elements
✓Decorative stone work
✓Temple stone work
✓Monument elements

Key Advantages

✓Accurate pillar making
✓Smooth motorized rotation
✓Efficient X & Z axis control
✓Reduces manual labor
✓Compatible with bridge cutter

Gallery & Videos

Lathe Attachment - Pillar Making by Bridge Cutter

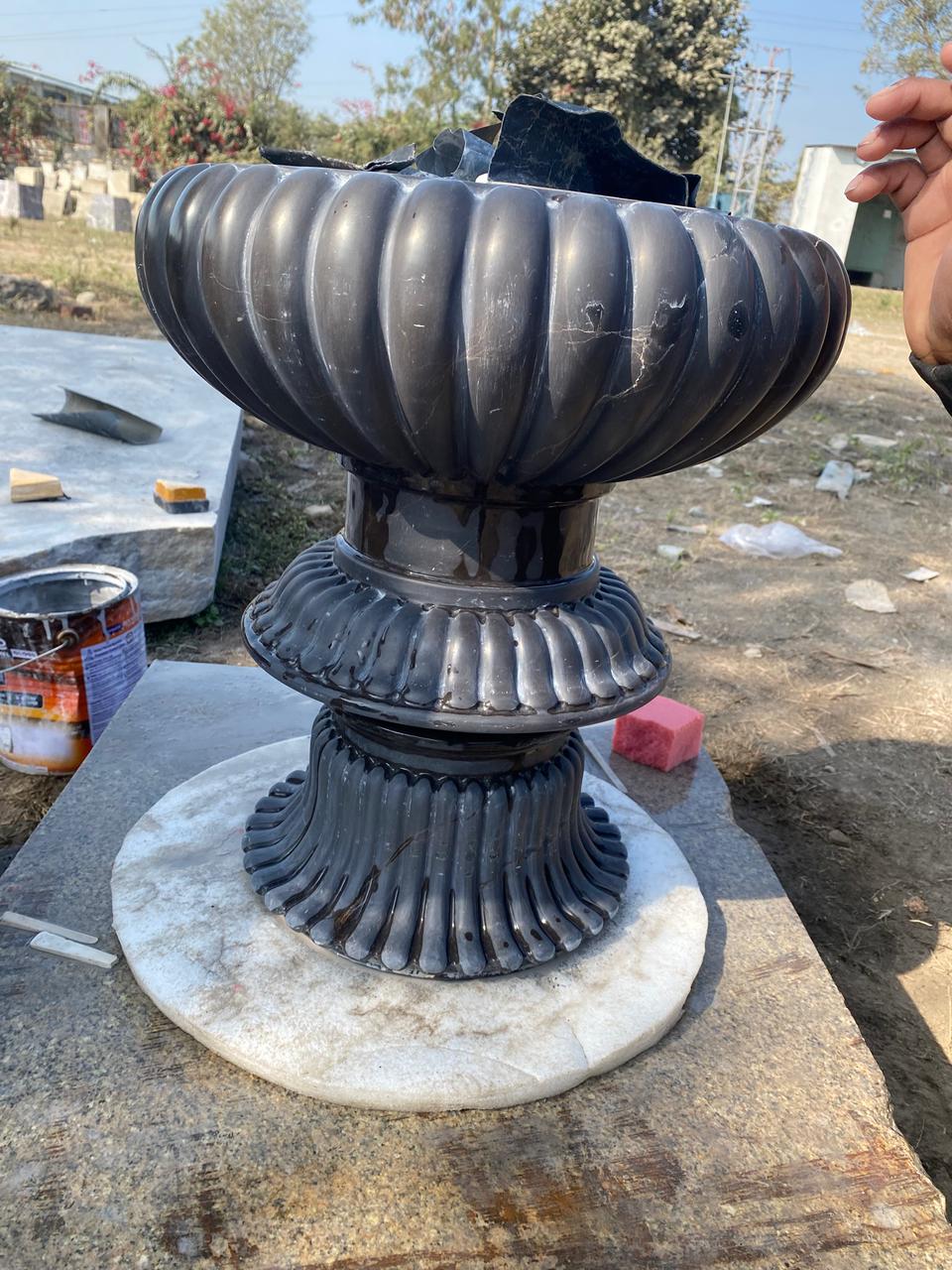

Lathe Attachment - Cutter Carving & Spindle Pillar Engraving

Advanced pillar carving and engraving system. Cutter performs rough and profile carving while spindle performs fine engraving for detailed decorative work on round stone surfaces.

Dual-Operation System

✓Pillar carving by cutter
✓Pillar engraving by spindle
✓Synchronized operation

Working Functions

✓Round cylinder stone shaping
✓Decorative profile carving
✓Fine design engraving

Operation Method

Step 1

Stone pillar rotates using lathe attachment

Step 2

Cutter performs rough and profile carving

Step 3

Spindle performs fine engraving and design

Gallery & Videos

Lathe Attachment - Cutter Carving & Spindle Pillar Engraving

Lathe Attachment - Cutter Carving & Spindle Pillar Engraving

Technoline Bridge Cutter Machines

Advanced bridge cutting solutions designed for marble, granite, quartz, and stone processing with options ranging from standard cutting to full CNC multi-axis operations.

Model Comparison

Feature / Model	Model 01 Standard Bridge Cutter	Model 02 CNC 3 Axis Profiling by Cutter	Model 03 CNC 3 Axis Profiling + Engraving	Model 04 CNC 3 Axis Profiling + Pillar	Model 05 CNC 4 Axis All Functions
CNC Control	No	Yes	Yes	Yes	Yes
Axis Control	PLC	PLC / CNC 3 Axis	PLC / CNC 3 Axis	PLC / CNC 3 Axis	PLC / CNC 4 Axis
Straight Cutting
Right Angle Cutting
Stone Profiling	No
Engraving	No	No		No
Pillar Making	No	No	No
Applications	Cutting / Tiling	Profiling	Design Work	Pillars	All-in-One
Angle Cutting	Head + Table Rotary

Technical Specifications

Machine Type	Bridge Cutter / CNC Bridge Cutter	Structure	Heavy-duty steel structure with floating bridge
Working Material	Marble, Granite, Quartz, Stone	Axis Configuration	PLC / CNC 3 Axis (X,Y,Z) / CNC 4 Axis (X,Y,Z,A)
Cutting Length	As per requirement	Cutting Thickness	As per customer specification
Main Motor Power	As required	Controller	Industrial CNC Controller
Programming	G-code / CAD-CAM Compatible	Power Supply	3 Phase, 380–415V, 50Hz
Optional Features	Engraving spindle, Pillar attachment

Table & Head Axis System

Table Movement

✓ Vertical up & down movement for easy loading/unloading

✓ Optional rotary table (0°–90°)

✓ 360° rotation for circular & curved cutting

Head Axis Configuration

✓ A-Axis: 0° or 90° rotation for vertical & horizontal cutting

✓ B-Axis: Chamfering & edge finishing (Manual / Motorized, 0°–90° tilt)
