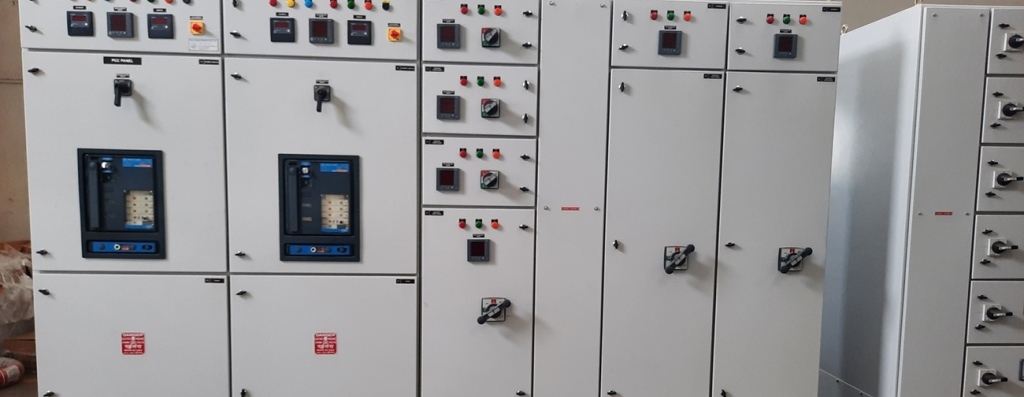

Technoline Machineries & Solution Pvt. Ltd. is a renowned manufacturer and supplier of a wide range of best quality PCC/ MCC Panels. These panels are made up of 14/16 SWG CRCA material semi bolted structure firmly supported. It ensures desired breaking capacities, temperature rise & IP protection, enough Space for incoming & outgoing Cable termination. The offered range of panels is made using premium grade raw materials under the guidance of our skilled professionals. Moreover, the offered range is also available at the most standard price range.
TECHNICAL SPECIFICATION OF MCC/PCC PANEL:
CONSTRUCTIONAL FEATURES:
The Design of the PCC/MCC panel is robust and rigidly constructed to suit a wide range of industries and buildings. The supporting structures which form the framework are made up of 2.0 mm thickness steel sections, fully pressed and punched by CNC machines. The door covers, partitions and panel parts are fabricated with CNC machines for high precision and accuracy. The base degree of protection is IP42. A higher degree of protection like IP54 or more can be manufactured on request. Samcon switchboards can be supplied both with top and or bottom entry.
BUSBARS:
Non-insulated or insulated high conductivity copper/Aluminum bus bars with neutral are housed at the top section of the cubicle. The main busbars are mounted and supported on SMC busbar supports. The busbar chamber is housed in a separate compartment on top of the cubicle with facilities for segregation.
CABLE CHAMBER :
Cable Chamber of adequate size is provided on the side of Each Vertical with a sufficient number of Cable Tie bars. Each Terminal block is provided with the identification markers & feeder designation sticker. Control & Power TB’s are separated from each other. Each Cable Chamber is provided with panel illumination CFL lamp with door switch & heater & Thermostats are provided optionally.
DRAWINGS:
Following Drawings are provided to the customer before starting the manufacturing of PCC/MCC of the panel.
- General Arrangement
- Single Line Diagram
- Bill Of Material
- General Notes
- Control Circuits
